* NVIDIA Jetson Carrier Board:
Design in small size of 98mm*76mm*42mm to save operation space, and maintain function in the temperature range from -20°C to 65℃
Feature
Support NVIDIA Jetson Xavier NX Module
* Versatile Connectivity:
Offer 2x RJ45, 2x USB, 1x HDMI
* Input Power: DC +12V~ +24V
* Compact and Durable during Operation:
AI Performance
21 TOPS
GPU
384-core NVIDIA Volta? architecture GPU with 48 Tensor Cores
CPU
6-core NVIDIA Carmel Arm®v8.2 64-bit CPU
6MB L2 + 4MB L3
Memory
16GB 128-bit LPDDR4x
59.7GB/s
Storage
16GB eMMC 5.1
Video Encode
2x 4K60 (H.265)
4x 4K30 (H.265)
10x 1080p60 (H.265)
22x 1080p30 (H.265)
Video Decode
2x 8K30 (H.265)
6x 4K60 (H.265)
12x 4K30 (H.265)
22x 1080p60 (H.265)
44x 1080p30 (H.265)
CSI Camera
Up to 6 cameras
(24 via virtual channels)
14 lanes MIPI CSI-2
D-PHY 1.2 (up to 30 Gbps)
Power
10W - 20W

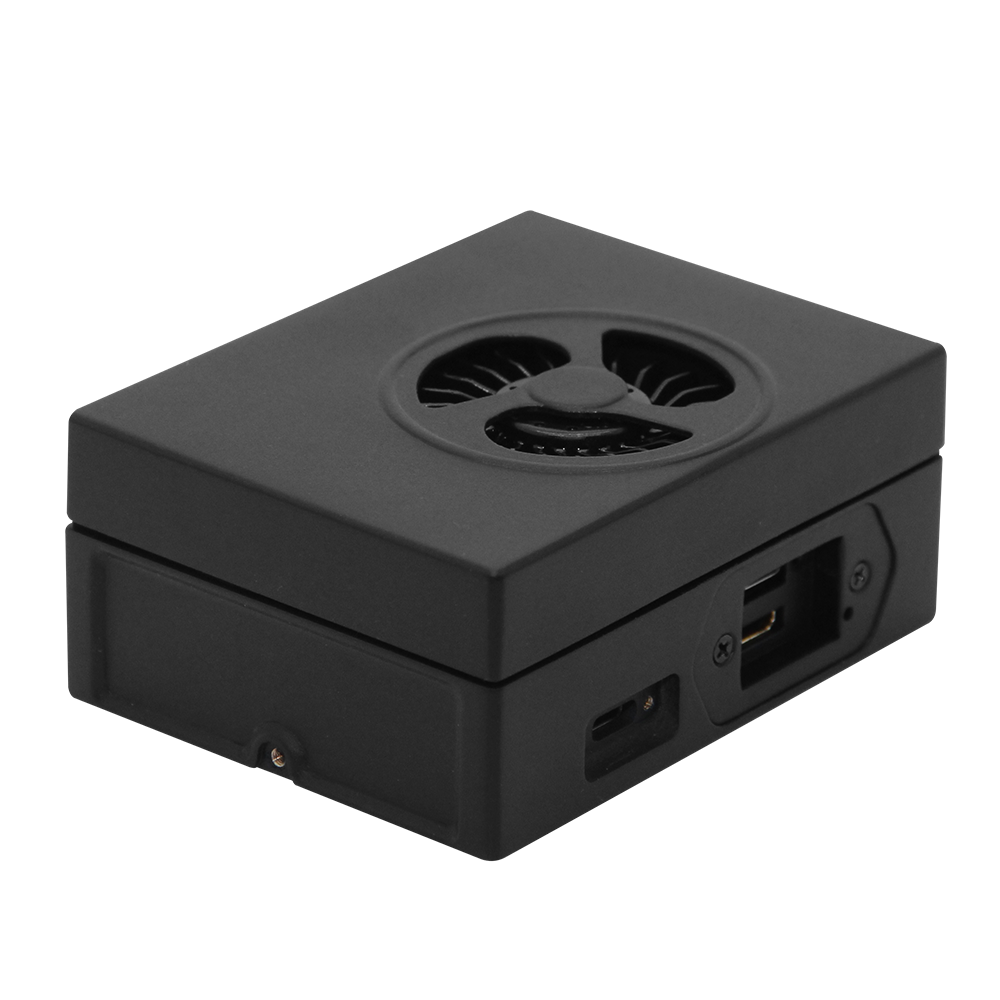

Product Name
NX16-7F4
Module
NVIDIA Jetson Xavier NX Modules
Type
Embedded Computer
Size
98mm*76mm*42mm
Weight
182g
Temperature
-20~+65°C
Power Supply
DC +9V～+24V

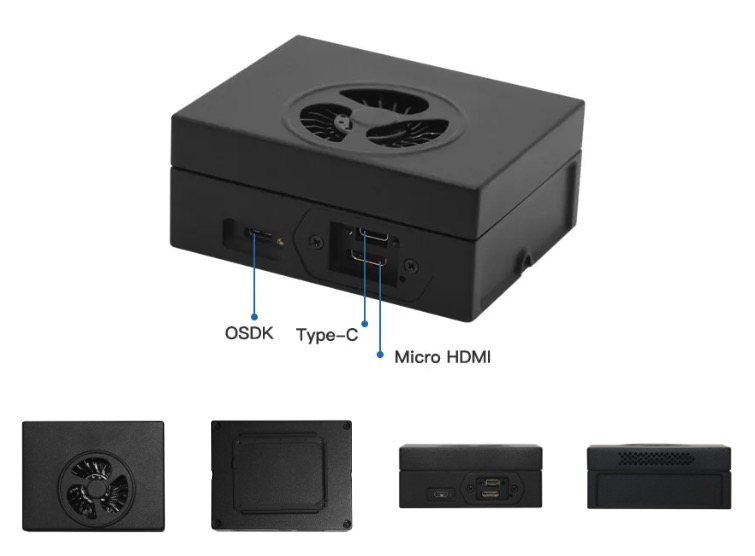

I/O
USB Type-C, Micro-HDMI,OSDK

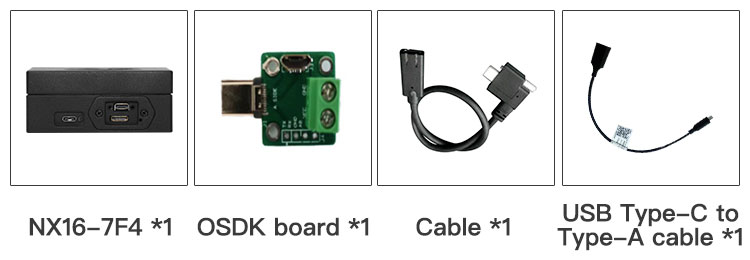

Packing List
