The 200I-101F1E5 embedded PC developed by Ascend Atlas 200I A2 module，the AI compute power is up to 20 TOPS， abundant interface ，scalable and can process data in real time on the edge computing.
|
|
Specification |
|
AI compute power |
20/8 TOPS INT8 10/4 TFLOPS FP16 |
|
Memory |
12 GB LPDDR4X, with a total bandwidth of 51.2 GB/s, or 4 GB LPDDR4X, with a total bandwidth of 34.1 GB/s，ECC supported |
|
CPU computing power |
4 x 1.6 GHz cores |
|
Encoding/ Decoding capability |
?20 TOPS:
H.264/H.265 hardware decoding: 40-channel 1080p 30 FPS, 4-channel 4K 75 FPS (3840 x 2160) H.264/H.265 hardware encoding: 20-channel 1080p 30 FPS, 3-channel 4K 50 FPS (3840 x 2160)
?8 TOPS:
H.264/H.265 hardware decoding: 20-channel 1080p 30 FPS, 2-channel 4K 75 FPS (3840 x 2160) H.264/H.265 hardware encoding: 12-channel 1080p 30 FPS, 2-channel 4K 50 FPS (3840 x 2160)
?20/8 TOPS:
JPEG decoding: 1080p 512 FPS; encoding 1080p 256 FPS; Max. resolution: 16384 x 16384 |
|
Max. Power Consumption |
25W / 21W |
|
Temperature |
-20°C ~ 60°C |
|

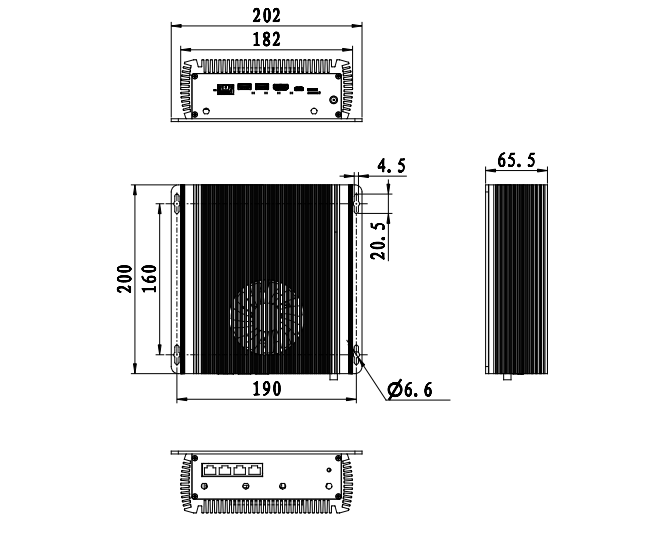

Dimensions |
202 mm * 206.5 mm* 65.5 mm |
| Weight | 2036g |
